導電性インク市場はプリンテッド・エレクトロニクスの普及に伴い、2033年までに45億米ドル規模に拡大する見通し。

導電性インク市場 2023-2033年

太陽電池、EMIシールディング、プリンテッド・エレクトロニクス、フレキシブル・ハイブリッド・エレクトロニクス、ウェアラブル・エレクトロニクス、e-テキスタイル、3Dエレクトロニクス用のフレーク状、ナノ粒子、無粒子、銅、ストレッチャブル、熱変形ナノワイヤー等のインク


製品情報 概要 目次 価格 Related Content
このレポートは8種の導電性インクを15市場で分析しています。30社以上の企業とのインタビューに基づいて、技術開発状況をまとめ、インクの特徴をフレーク銀、ナノ粒子銀、銅、ストレッチャブル/熱変形、無粒子等のインクで比較しています。 導電性インクへの要求項目に応じて、太陽電池、多層印刷センサー、ハイブリッド、インモールドエレクトロニクス及びRFID/スマートパッケージなどの用途別に可能性を評価しています。
「導電性インク市場 2023-2033年」が対象とする主なコンテンツ
(詳細は目次のページでご確認ください)
1. 全体概要
2. はじめに
3. 市場予測
3.1. 導電性インクの種類
3.2. 用途別分類
4. 導電性インク技術(材料別分類)
4.1. フレーク銀インク
4.2. ナノ粒子銀インク
4.3. 無粒子インク
4.4. 銅インク
4.5. カーボン系インク(グラフェンとCNTを含む)
4.6. 伸縮性/熱成形可能なインク
4.7. 銀ナノワイヤー
4.8. 導電性ポリマー
5. 導電性インクの用途
5.1. 電子回路製造(フレキシブル・ハイブリッド・エレクトロニクス、インモールド・エレクトロニクス、3Dエレクトロニクス、E-テキスタイル、電子回路プロトタイピング)
5.2. センシング(静電容量式タッチセンサー、圧力センサー、バイオセンサー、歪みセンサー、電子皮膚パッチ)
5.3. その他の用途(太陽電池、ヒーター、EMIシールディング、アンテナ、RFIDとスマートパッケージング)

「導電性インク市場 2023-2033年」は以下の情報を提供します
技術動向とメーカー分析:
  • 導電性、硬化時間、硬化温度を含む複数指標に基づく8種類の導電性インクとサプライヤー比較
  • 電子皮膚パッチやインモールド・エレクトロニクス(IME)などの最先端分野を含む15種類の導電性インクアプリケーションの具体的要件分析
  • 15種類の導電性アプリケーションの見通し:各導電性インクに関連する具体的結論を含む
  • 様々なアプリケーションに対応した導電性インクの例
  • 金属(銀、銅等)と配合物(フレーク、ナノ粒子、無粒子等)両方の細分化された導電性インク製造状況
  • 導電性インクメーカー30社以上のSWOT分析と企業規模(バリュープロポジションとターゲットアプリケーションの考察を含む)
  • 委託製造請負業者やEMS企業による導電性インクの大量導入に向けた適格性評価
  • 各種導電性インクの価格設定:サプライヤーへの取材や公表価格分析に基づく
  • 銀価格の上昇が導電性インク市場に与える影響評価
  • 導電性インクの種類とアプリケーション要件のベンチマークと適合性評価
市場予測と分析:
  • 市場規模と10年間市場予測(導電性インク別とアプリケーション別)
  • 各種導電性インクとアプリケーションの技術的・商業的成熟度の評価

IDTechEx's report 'Conductive Inks Market 2023-2033' comprehensively explores this crucial material technology that underpins both photovoltaics and the emerging field of printed electronics. Based on interviews with over 30 companies, the report assesses the market for each of 8 different conductive ink types across 15 different applications. Conductive ink types include flake-based silver, nanoparticle-based silver, copper, stretchable/thermoformable and particle-free, while applications include photovoltaics, multiple types of printed sensors, flexible hybrid electronics (FHE), in-mold electronics (IME), and RFID/smart packaging. This detailed segmentation provides 39 distinct forecast lines, providing a clear picture of the status of the market for each ink type and future opportunities. The market as a whole is currently valued at US$2.7B, and forecast to grow to US$4.5B by 2033, with all this growth coming from emerging applications across printed/flexible/wearable electronics rather than from silicon photovoltaics.

Primary insight from interviews with individual players, ranging from established players to innovative start-ups, is included via over 30 detailed company profiles that include discussion of both technology and business models along with SWOT analysis. Additionally, the report includes analysis of conductive ink parameter space, based on a database of over 100 conductive inks that includes curing time, conductivity, and viscosity. Together with segmentation of suppliers by ink type, this should assist with gaining a comprehensive picture of the global conductive ink market.

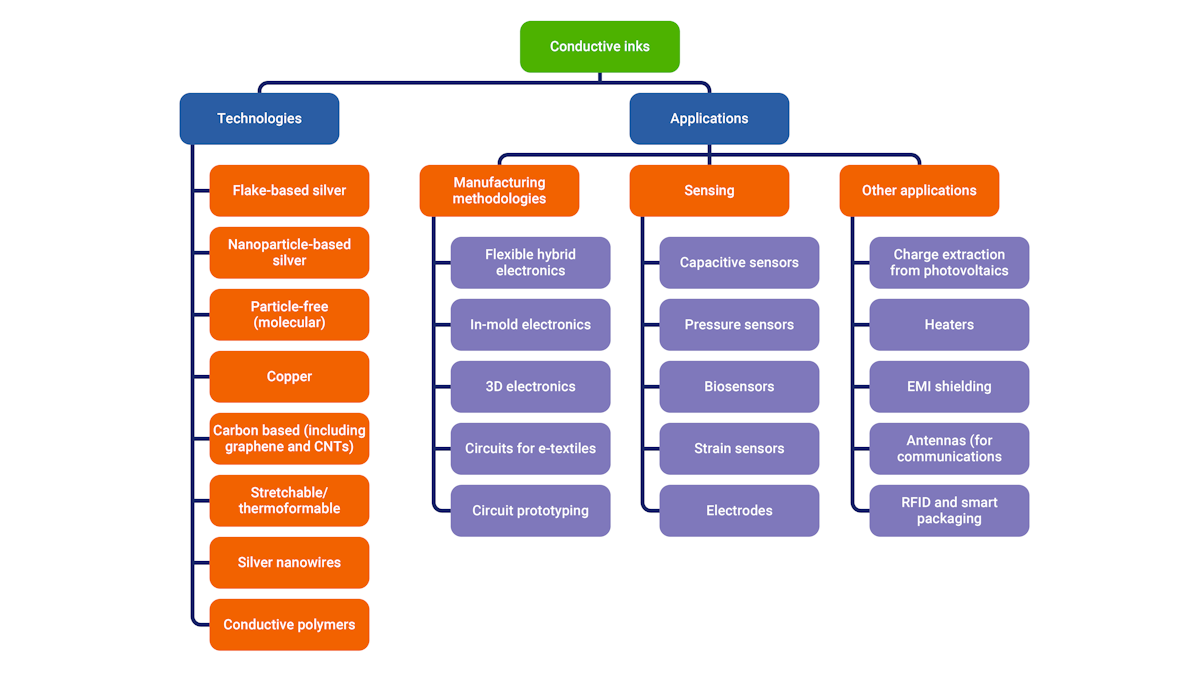

Conductive ink types and applications covered in the report.
Technical developments
Flake-based conductive inks are a longstanding technology, widely used for metallizing the upper surface of photovoltaic panels for charge extraction. However, this market is unlikely to keep up with growth in PV panels, with new technologies developing to reduce the amount of silver ink required. Instead, much of the growth will come from emerging applications across the printed flexible electronics space.

This broadening of the application space creates opportunities for emerging conductive ink formulations that aim to meet specific application requirements:
  • Particle-free conductive inks are metallized in situ, producing a smooth, thin conductive layer ideally suited to high frequency EMI shielding and antennas. The very low viscosity also makes these inks ideally suited to high resolution deposition techniques such as aerosol printing.
  • Nanoparticle-based conductive inks offer higher conductivity, enabling more compact circuit designs.
  • Liquid metal gel makes an ideal stretchable ink since there is no increase in resistance over time - the conductive liquid flows to accommodate the dimensional change. It is primarily targeted at wearable strain sensors.
  • Copper-based inks with additives that prevent oxidation during sintering. These are gaining significant traction, with major electronics manufacturers running qualification projects. Copper inks are especially suitable where cost is the main driver, such as RFID/smart packaging antennas.


Application opportunities
As a platform technology for printed electronics, conductive inks can be utilized in a remarkably wide range of applications, spanning market verticals ranging from healthcare to energy. This report divides the conductive ink application space into 15 segments, each outlining:
  • Introduction to the application.
  • Assessment of technological and commercial status.
  • Conductive ink requirements for that specific application.
  • Examples of conductive inks targeting that application.
  • Market forecast, including the adoption of different ink types where appropriate.
Some of the most promising conductive ink applications, due to the potential for both rapid growth and specialist ink requirements enabling differentiation, are electronic skin patches, strain sensors and in-mold electronics (IME).

Outlook
The growth in printed/flexible/hybrid electronics, especially where it enables new applications and even business models such as electronic skin patches for remote health monitoring and smart packaging, will drive the growth of the conductive ink market over the next decade. Furthermore, many emerging applications, such is in-mold electronics, e-textiles and high-frequency antennas, have specific ink requirements that provides an opportunity for differentiation.

Key questions answered in this report

  • What types of conductive inks are produced by each supplier?
  • How will rising silver prices impact the conductive ink market?
  • What are the requirements for each conductive ink application, and how much ink is used in each?
  • What is the technological and market readiness of each conductive ink application?
  • What are the key growth opportunities where there is scope for differentiation?
  • Who are the key players producing each type of ink?

IDTechEx has 20 years of expertise covering printed and flexible electronics, including conductive inks. Our analysts have closely followed the latest developments in the technology and associated markets by interviewing many conductive ink suppliers and users and annually attending multiple printed electronics conferences such as LOPEC and FLEX. This report provides a complete picture of the fragmented conductive ink landscape, helping to inform product development and positioning.
This report provides the following information:

Technology trends & manufacturer analysis:
  • Comparison of 8 conductive ink types and suppliers across multiple metrics, including conductivity, curing time and curing temperature.
  • Assessment of the specific requirements of 15 conductive inks applications, including emerging areas such as electronic skin patches and in-mold electronics (IME).
  • Outlook for each of the 15 conductive applications, including specific conclusions relevant to conductive inks.
  • Examples of conductive inks formulated for many different applications.
  • Segmentation of the fragmented conductive ink manufacturing landscape by both metal (silver, copper, etc) and formulation (flakes, nano-particles, particle-free etc).
  • Over 30 company profiles of conductive ink manufacturers, including SWOT analysis and size along with discussion of value proposition and target applications.
  • Discussion of how contract manufacturers and EMS companies are qualifying conductive inks for mass production.
  • Pricing for each conductive ink type, based on discussion with suppliers and analysis of published prices. This will include estimates of how the value is divided amongst materials and processing steps.
  • Assessment of how rising silver prices will affect the conductive ink market.
  • Benchmarking of conductive ink types and application requirements, enabling assessment of suitability.

Market Forecasts & Analysis:
  • Market size and 10-year market forecasts segmented by both conductive ink type and applications.
  • Assessment of technological and commercial readiness level for different types and applications of conductive ink.
